RV Slide Out Mechanism Types: A Complete Guide

Table of contents

Modern RVs are all about comfort, and one of the key features that have transformed the RV experience is the RV slide out mechanism. These systems significantly expand the living space in RVs, making life on the road much more comfortable. By sliding out walls, they create additional room for dining areas, seating, or sleeping quarters, giving RVs a home-like feel. Over the years, camper slide out mechanisms have evolved, incorporating new technology and improved designs. Whether you’re an RV owner, new to RVs, or someone looking to buy an RV, understanding the different types of RV slides and types of RV slide out seals is essential for making informed decisions and ensuring you get the most out of your vehicle. In this complete guide, we’ll explore the various RV slide out mechanism types, their pros and cons, and the maintenance each type requires. From electric systems to hydraulic solutions, you’ll gain a full understanding of what goes into making your camper slide out mechanism function smoothly.

Electric Slide-Out Systems

One of the most common RV slide out mechanism types is the electric system. These systems use a 12-volt motor to extend and retract the slides, and they’re found in many RVs due to their simplicity and cost-effectiveness. Electric slide-out systems are easy to use, often controlled by a button inside the RV, making them convenient for most owners.

How Electric Slide-Out Systems Work

Electric slide-out systems function using a motor that drives the movement of the slide. The motor is powered by the RV’s battery, which allows the slide to extend outward or retract inward. The key to this system is the gear mechanism that connects to the motor, allowing for the smooth operation of the slide. Depending on the weight and size of the slide, different electric mechanisms may be used, including rack and pinion slides, cable pulley systems, Schwintek slides, and Power Gear slides.

Rack and Pinion Slides

The rack and pinion slide is one of the most reliable and widely used camper slide out mechanisms. It operates through a simple but effective gear system that can handle heavier slides, making it ideal for larger RVs.

Mechanics of Rack and Pinion Slides

This system involves a motor connected to a pinion gear, which moves along a rack mounted on the frame of the RV. As the motor turns, the gear engages with the teeth of the rack, allowing the slide to extend or retract. The system is known for its durability and ability to support substantial weight, making it perfect for heavier slide-outs such as those housing kitchen or bedroom areas.

Maintenance and Common Issues

Rack and pinion systems require regular lubrication of the gears to ensure smooth operation. Over time, gears may wear down or accumulate debris, leading to difficulty extending or retracting the slide. Ensuring the system is free from dirt and properly lubricated will help prevent these issues.

Cable Pulley Systems

The cable pulley system is another popular RV slide out mechanism that offers a lightweight and efficient solution for moving larger slides. This system uses a combination of cables, pulleys, and motors to control the movement of the slide-out.

How Cable Pulley Systems Work

In a cable pulley system, multiple steel cables run through a series of pulleys to guide the slide-out in and out. An electric motor powers the movement of these cables, allowing the slide to move smoothly. This system is advantageous because it’s lightweight, making it an excellent option for RVs with multiple or larger slide-outs.

Pros and Cons of Cable Pulley Systems

Cable pulley systems are relatively easy to install and maintain, but they require regular inspection of the cables to ensure there are no frays or breaks. While the system is lightweight, it may not be as robust as others when it comes to handling very heavy slide-outs. However, for most standard RVs, the cable pulley system is a reliable option.

Schwintek Slides

types of rv slide out seals
Types of RV slide out seals

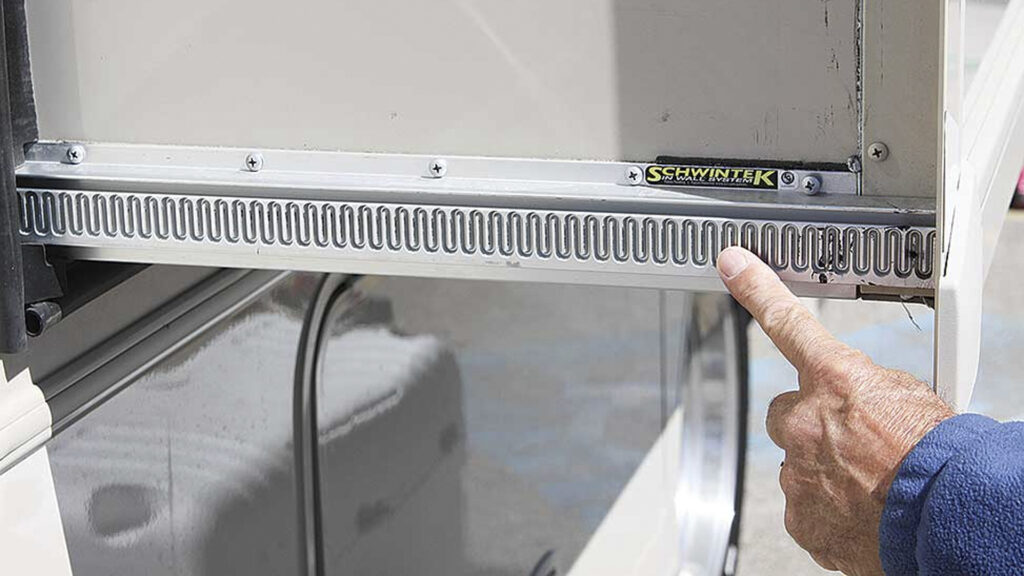

Schwintek slides are known for their unique worm gear system and dual-motor design, making them one of the most innovative camper slide out mechanisms available. This system is particularly useful for slides that are smaller or lighter.

How Schwintek Slides Work

Schwintek slides operate using two motors—one on each side of the slide. The motors are connected to worm gears that guide the slide in and out, providing a smooth and consistent movement. The dual-motor design ensures that both sides of the slide move together, preventing misalignment issues.

Advantages and Drawbacks of Schwintek Slides

One of the main advantages of Schwintek slides is their low-profile design, which takes up less space inside the RV. They’re also relatively easy to install. However, they are typically best suited for lighter slides, as they may struggle with heavier loads. Regular maintenance, including keeping the gears clean and lubricated, is necessary to prevent motor burnout.

Power Gear Slides

Power Gear slides are another type of electric slide-out system, though they differ slightly from other mechanisms in terms of design and operation.

How Power Gear Slides Work

Power Gear systems use an electric motor to extend and retract the slide, similar to other electric systems. However, the key difference lies in the way the gears are designed, allowing for smooth and powerful movement of the slide.

Maintenance and Operation

Power Gear slides are relatively low-maintenance, though periodic inspections and lubrication of the moving parts are recommended. They are known for their reliability and strength, making them a popular choice for RV owners.

Hydraulic Slide-Out Systems

While electric slide-out systems are common, hydraulic slide-out systems are preferred for larger RVs or those with multiple slides due to their power and ability to handle heavier loads.

How Hydraulic Slide-Out Systems Work

Hydraulic systems use fluid pressure to extend and retract the slide. A pump pushes hydraulic fluid through lines to cylinders that move the slide-out. This system can generate more force than electric motors, making it ideal for larger, heavier slides.

Components of a Hydraulic System

A typical hydraulic system includes a pump, fluid reservoir, hydraulic lines, and cylinders. These components work together to move the slide smoothly in and out, even under heavy loads. However, because the system relies on hydraulic fluid, leaks can occur, which may require regular maintenance.

Advantages of Hydraulic Systems

Hydraulic systems are known for their power and ability to handle multiple slide-outs simultaneously. They’re also quieter than many electric systems and offer a smoother, more consistent operation. For RV owners with larger rigs, a hydraulic system may be the best choice.

Maintenance and Common Issues

Like electric systems, hydraulic slide-out systems require regular maintenance. Checking fluid levels, inspecting for leaks, and ensuring the lines are free from blockages are essential to keeping the system running smoothly. If a problem does occur, such as a hydraulic leak, it’s important to address it quickly to avoid more serious damage.

Choosing the Right Slide-Out Mechanism for Your RV

When deciding on an RV slide out mechanism, it’s essential to consider factors such as the size of your RV, the number of slides you need, and your budget.

  • Electric Slide-Outs: Best for smaller to mid-sized RVs with one or two slides.
  • Hydraulic Slide-Outs: Ideal for larger RVs or those with multiple slides, especially if they are heavy.
  • Rack and Pinion or Cable Pulley Systems: Durable and reliable, especially for heavier slide-outs.
  • Schwintek Slides: Perfect for lighter slides and smaller RVs, but may not be suitable for heavy loads.

Maintenance and Care for RV Slide-Out Mechanisms

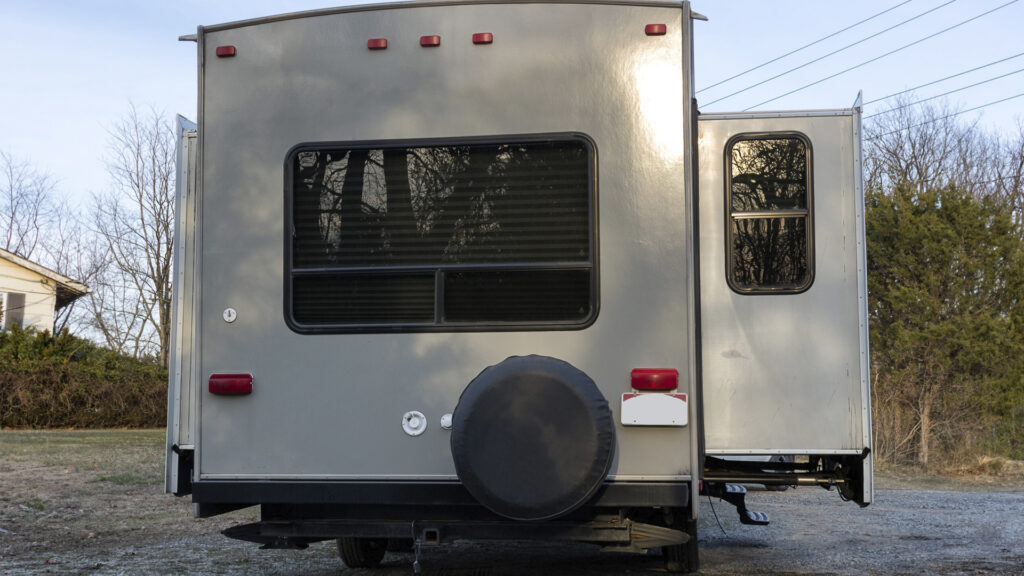

camper slide out mechanism
Camper slide out mechanism

To keep your camper slide out mechanism in good working condition, regular maintenance is essential.

Regular Inspections

Check all moving parts, seals, and motors regularly. This includes inspecting the types of RV slide out seals, which play a critical role in preventing leaks and maintaining climate control.

Lubrication and Cleaning

Lubricate gears, tracks, and other moving parts to prevent wear and ensure smooth operation. Keep the slide-out area clean and free from debris to avoid unnecessary strain on the mechanism.

Troubleshooting Common Slide-Out Problems

If your slide-out isn’t working correctly, check for common issues like motor failure, hydraulic leaks, or misalignment. Always consult the manufacturer’s guide for specific troubleshooting tips, and seek professional help if necessary.

As technology continues to evolve, future RV slide out mechanism types may include smarter, more efficient systems that are easier to maintain and operate. Innovations such as automatic self-leveling slides or wireless control systems could be on the horizon, making RV slide-outs even more user-friendly.

By understanding the various RV slide out mechanism types and how to maintain them, you can enjoy a smoother, more comfortable RV experience. Whether you’re dealing with types of RV slides like rack and pinion slides or considering types of RV slide out seals, this knowledge will help keep your camper in top condition.
