The Ultimate Guide to RV Electrical Systems
Table of contents
Understanding the intricacies of your RV wiring and electrical system is crucial for a safe and enjoyable travel experience. Whether you’re a seasoned RVer or new to the lifestyle, having a solid grasp of your RV’s electrical setup can make all the difference in comfort, convenience, and cost savings. From the basics of RV power to advanced connections and upgrades, this guide will walk you through everything you need to know about RV electrical systems.
The Basics of RV Electrical Systems
At the heart of your RV electrical system are two primary types of power: AC (Alternating Current) and DC (Direct Current). The AC system in your RV wiring typically operates at 120 volts, powering larger appliances like air conditioners, microwaves, and televisions. On the other hand, the DC system runs at 12 volts and is responsible for powering essential functions such as lights, water pumps, and fans.
Understanding the basic electrical formula—watts = amps x volts—is essential for managing your RV power effectively. For example, if you’re using a 120-volt AC appliance that requires 600 watts, the current draw would be 5 amps (600 watts ÷ 120 volts = 5 amps). Knowing this helps you balance your power usage, especially when operating multiple devices simultaneously.
12-Volt DC System
The 12-volt DC system is the backbone of your RV’s electrical system, powering many of the essential functions that make your RV habitable. The primary source of power for this system is the RV battery or batteries, which store energy to run lights, fans, water pumps, and other critical devices.
Your RV battery charges from multiple sources: shore power, a generator, or solar panels. Devices that run on DC power are typically low-energy, meaning they draw minimal current, which helps conserve your RV’s battery life. For example, your RV’s interior lights, powered by the 12-volt DC system, draw only a small fraction of the power needed by an air conditioner or microwave.
120-Volt AC System
The 120-volt AC system is your RV’s primary power source for more energy-intensive appliances. This system is powered either by connecting to shore power or using a generator. Common appliances that rely on the 120-volt AC system include air conditioners, microwaves, and residential-style refrigerators.
Shore power is the most reliable and consistent power source for your RV’s AC system. When connected to a campground electrical pedestal, your RV can draw power directly from the grid. Generators, on the other hand, offer a portable alternative, generating AC power when you’re boondocking or camping off-grid. However, generators require fuel and can be noisy, so they’re often used as a backup rather than a primary power source.
Connecting to Shore Power

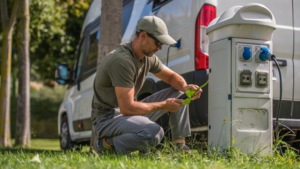

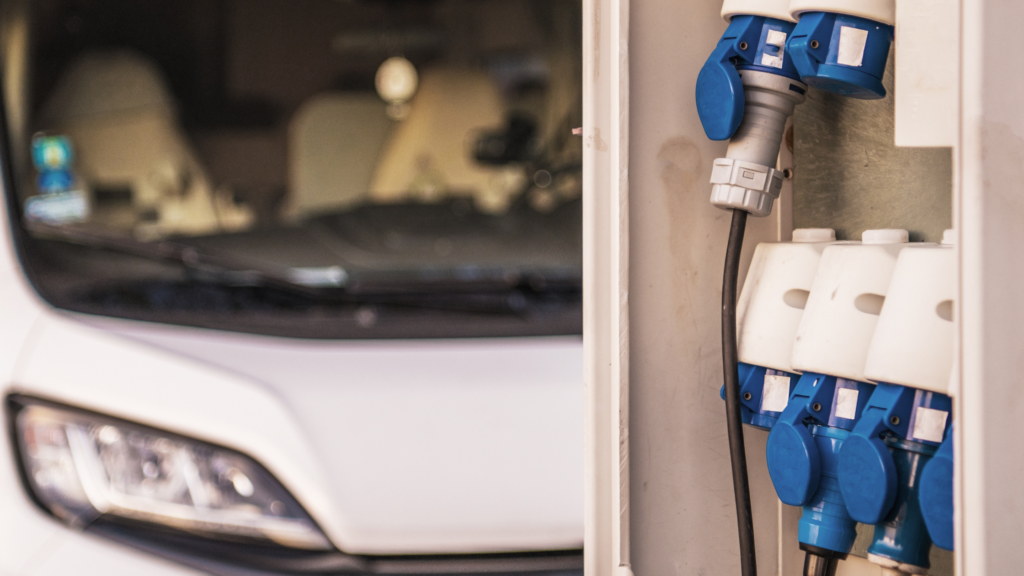

Safely connecting your RV to shore power is a crucial step in ensuring a smooth and uninterrupted camping experience. Shore power refers to the electrical connection provided at campgrounds, allowing you to plug in your RV and access a stable power supply.
Power Cords and Adapters
The most common shore power connections are 30-amp and 50-amp, and it’s essential to know which one your RV requires. A 30-amp connection typically supports up to 3,600 watts of power, while a 50-amp connection can handle up to 12,000 watts. Using the correct power cord and adapters is vital for safe and efficient RV electrical connections. For instance, if your RV is designed for 30-amp service and you’re connecting to a 50-amp pedestal, you’ll need an appropriate adapter to avoid overloading your system.
Safety First: Using Polarity Testers and Surge Guards
Before plugging into shore power, always use a polarity tester to ensure the campground pedestal is wired correctly. Incorrect wiring can lead to electrical hazards, potentially damaging your RV electrical system, wiring, and appliances.
Surge guards are another essential safety tool, protecting your RV from power surges or voltage spikes that could occur at the campground. A surge guard acts as a barrier, preventing excess voltage from reaching your RV wiring and potentially causing costly damage. Always make sure to install a surge guard between your RV’s power cord and the electrical pedestal.
Managing Power Consumption
Managing your RV’s power consumption is crucial, especially when camping in areas with limited power sources or when boondocking. Some RV appliances draw a significant amount of power, so understanding how to balance your electrical load is essential.
Identifying High-Power-Draw Appliances
Appliances such as air conditioners, microwaves, and space heaters are some of the highest power consumers in an RV. Running these appliances simultaneously can quickly exceed your available power supply, leading to tripped breakers or overloaded circuits.
Power Conservation Tips
To conserve energy, consider using lower-power alternatives where possible. For example, instead of using an electric space heater, opt for propane heating if your RV is equipped for it. Additionally, when boondocking, prioritize the use of DC-powered devices, as they consume less energy and allow your batteries to last longer.
Alternative Power Sources for RVs
When shore power isn’t available, alternative power sources become essential for maintaining your RV’s electrical system. Two of the most common alternatives are generators and solar panels.
Generators
Generators are a popular choice for RVers who need a reliable power source when off-grid. There are various types of generators, ranging from small, portable units to larger, more powerful models that can run multiple appliances simultaneously.
When choosing a generator, consider factors such as fuel type, noise level, and wattage output. Inverter generators are particularly popular among RVers because they provide clean, stable power that’s safe for sensitive electronics, and they tend to operate more quietly than traditional generators.
Solar Panels
Solar panels offer a sustainable and silent alternative to generators, making them an attractive option for environmentally conscious RVers. A typical solar power system for an RV includes solar panels, a charge controller, batteries, and an inverter. The solar panels capture energy from the sun, which is then stored in the RV’s batteries for later use.
While the initial investment in a solar power system can be significant, the long-term benefits include reduced reliance on fuel, minimal maintenance, and the ability to camp in remote locations without worrying about power supply. Solar panels are particularly useful for keeping your 12-volt DC system charged, allowing you to run essential appliances even when off-grid.
Maintenance and Troubleshooting RV Electrical Systems
Regular maintenance is key to keeping your RV electrical system in top condition. Simple tasks like checking battery water levels, cleaning terminals, and inspecting wiring for wear can prevent minor issues from becoming major problems.
Common Electrical Issues and Troubleshooting
Some common RV electrical issues include dead batteries, blown fuses, and tripped breakers. If you encounter these problems, start by checking the most obvious sources, such as battery connections and fuse boxes. If the issue persists, consult your RV’s manual for troubleshooting tips or seek professional assistance to avoid potential damage.
For example, if your RV’s 120-volt AC system isn’t working, check the shore power connection first. Ensure that the campground pedestal is delivering power, and then check your RV’s breaker panel for tripped breakers. If everything seems fine but the problem persists, it might be time to call in a professional.
Upgrading Your RV’s Electrical System
As you spend more time in your RV, you might find that upgrading your RV electrical system wiring can enhance your overall experience. Some popular upgrades include adding inverters, upgrading batteries, or installing energy-efficient appliances.
Adding Inverters
An inverter converts DC power from your batteries into AC power, allowing you to run AC appliances even when not connected to shore power. Inverters come in various sizes, so choose one that matches your power needs. For instance, if you plan to run a microwave or television off-grid, a larger inverter with higher wattage output is necessary.
Upgrading Batteries
If you frequently camp off-grid, upgrading to larger or additional batteries can provide more stored power, extending your ability to run DC appliances without recharging. Lithium batteries are a popular upgrade due to their longer lifespan, lighter weight, and faster charging capabilities compared to traditional lead-acid batteries.
Installing Energy-Efficient Appliances
Energy-efficient appliances consume less power, allowing you to run more devices simultaneously without overloading your RV electrical system. Consider upgrading to LED lighting, which uses a fraction of the energy of traditional incandescent bulbs, or replacing older appliances with newer, more efficient models.
